BVFW Welded Type_Shanghai Keyontechs Co., Ltd.

HOME > PRODUCTS > A+X Balanced Venturi Flow Meter

BVFW Welded Type

Pipe size range: DN15-DN600. Pressure rating range: CL150-CL2500, PN2.5-PN320. Structural features: the meter body is directly welded to the process pipeline without flanges and gaskets, reducing leakage points of the pipe.

Product Details

Pipe size range: DN15-DN600

Pressure rating range: CL150-CL2500, PN2.5-PN320

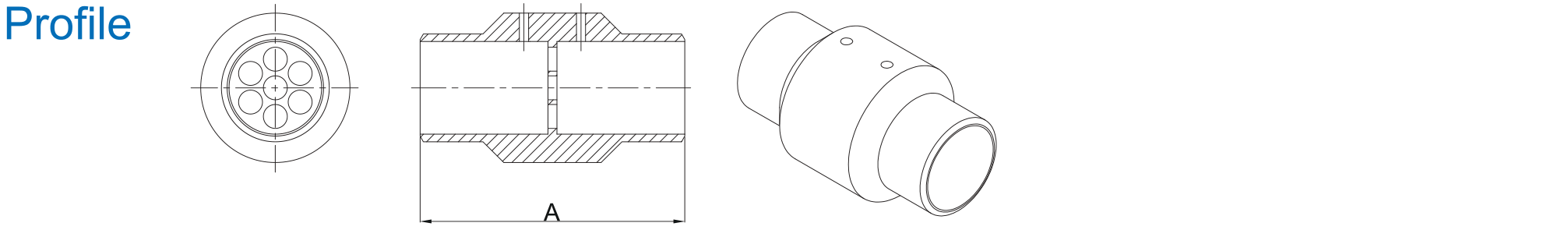

Structural features: the meter body is directly welded to the process pipeline without flanges and gaskets, reducing leakage points of the pipe.

Scope of application: it is suitable for high-pressure and ultra-high pressure flow measurement.
