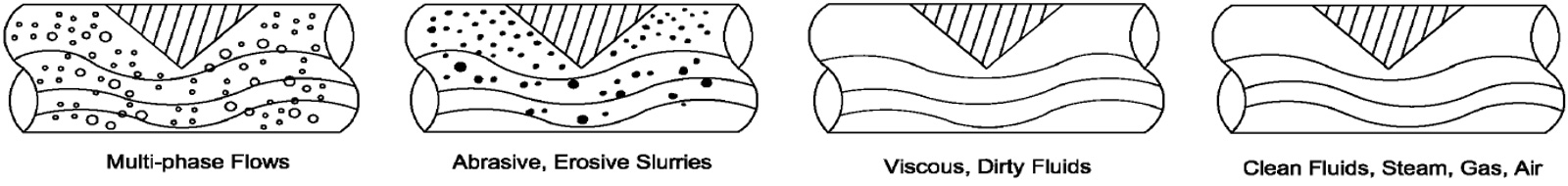

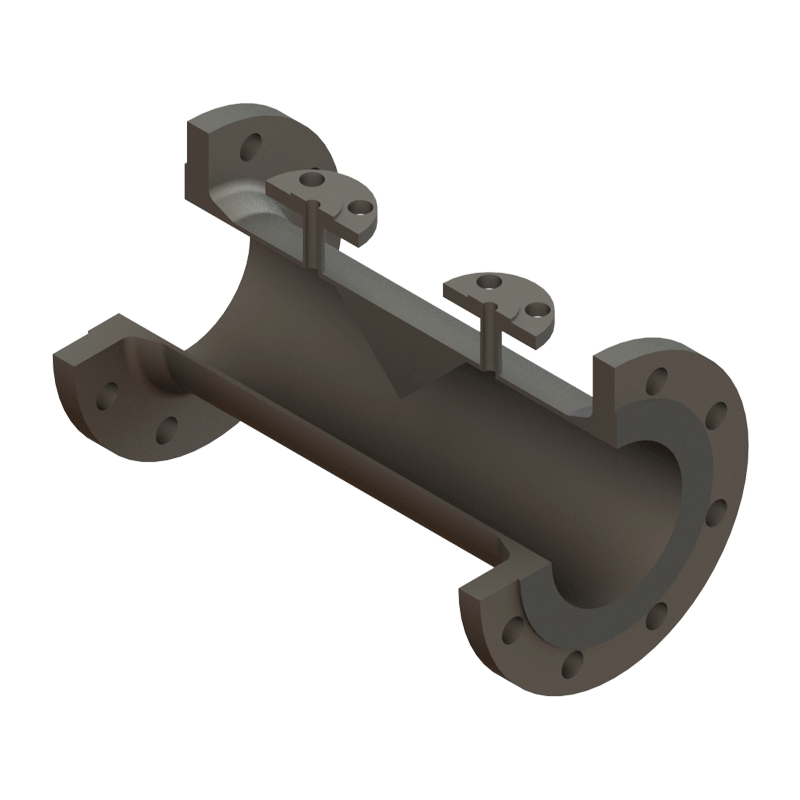

A+X wedges are designed and manufactured in accordance with ISO 5167-6. It is mostly used for dirty fluid measurement.

Standard Specification

● Size: DN15 - 600

● Pressure: PN0 - 42MPa

● Temperature: T ≤550℃

● Reynolds Number: ReD 300 - 10^6

● Wedge Ratio: H/D 0.2 - 0.7

● Turn Down Ratio: 8:1

● Uncertainty: ±0.5%

● Repeatability: ±0.2%

● Straight Pipe Run: Upstream 5D Downstream 3D

● Bidirectional flow measurement: can be done

● Standard material: 304, 316, 321

● Customized materials: Hastelloy C-276, Monel 400, Inconel, more available upon request.

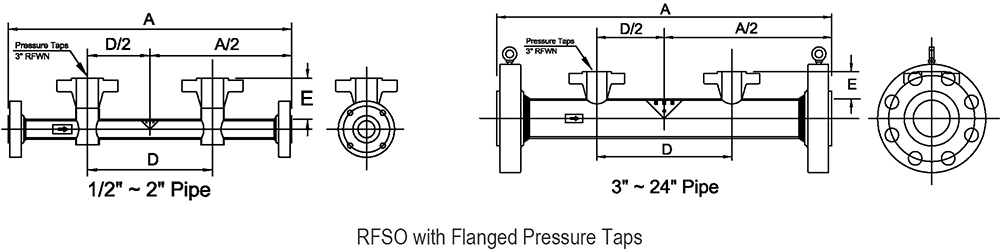

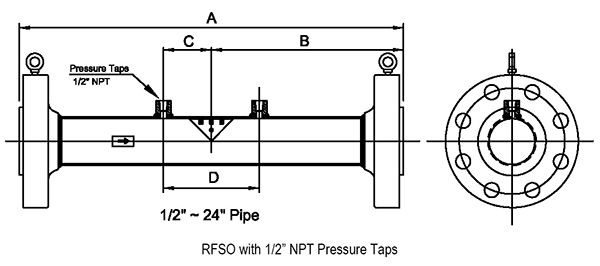

AWPP Flanged Type

● Flanged connection with precision pipe

AWFW Welded Type

● Welded onto the process pipeline
