AEMG Flow Meter-Clamp_Shanghai Keyontechs Co., Ltd.

Product Details

GENERAL DESCRIPTION

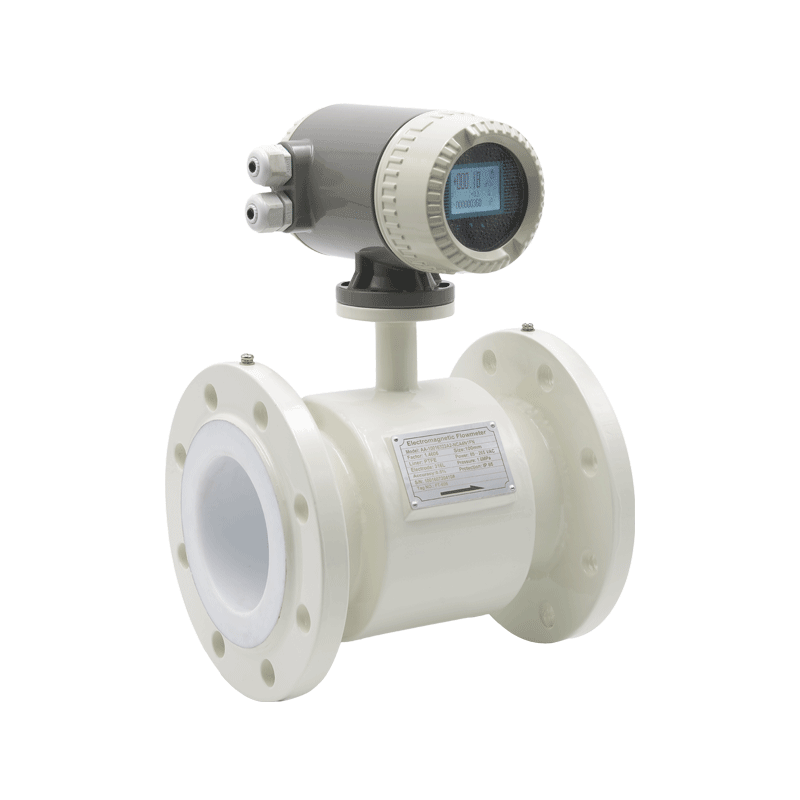

● AEMG-K Series is a sanitary type electromagnetic flowmeter.

● It is ideal for conductive liquids, widely used for drinking water, milk, beer, food & beverage and many other industrial fluids.

● Two-Way measurement function.

● Display in instantaneous flow and accumulated flow.

● Integral or remote display.

MAIN SPECIFICATIONS

Size	DN10 to DN100	Conductivity	More than 5μS/cm
Material	Measuring tube: SS304 Coil housing: SS304 (Standard) SS316 (Option)	Electrode	316L Stainless Steel Titanium Tantalum Hastelloy B Hastelloy C Tungsten Carbide Platinum
Liner	PTFE(standard) F46 (Option) PFA (Option)	Temperature	-20~+120℃(PTFE) -20~+140℃(F46) -20~+180℃(PFA)
Ingress Protection	IP65 (standard) IP67 can be optional for sensor	Connection	Tri-clamp
Explosion	Ex db ib mb llC T6 Gb	Ambient temp.	-20~+60℃
Grounding	SS316L electrode	Measuring range	0.3-12 m/s
electrode	(standard configuration)

FLOW RANGE

	0.3	1	2	3	4	5	12
10	0.0840	0.2826	0.5652	0.8478	1.1304	1.4130	3.3912
15	0.1920	0.6362	1.2723	1.9085	2.5447	3.1809	7.6341
20	0.3390	0.131	2.2619	3.3929	4.5239	5.6549	13.5717
25	0.5310	1.7671	3.5343	5.3014	7.0686	8.8357	21.2058
32	0.8682	2.8938	5.7876	8.6814	11.5752	14.4690	34.7256
40	1.3560	4.5239	9.0478	13.5717	18.0956	22.6195	54.2868
50	2.1210	7.0686	14.1372	21.2058	28.2743	35.3429	84.8229
65	3.5850	11.9459	23.8918	35.8337	47.7836	59.7295	143.3508
80	5.4300	18.0956	36.1911	54.2867	72.3823	90.4779	217.1469
100	8.4810	28.2743	56.5487	84.8230	113.0973	141.3717	339.2919

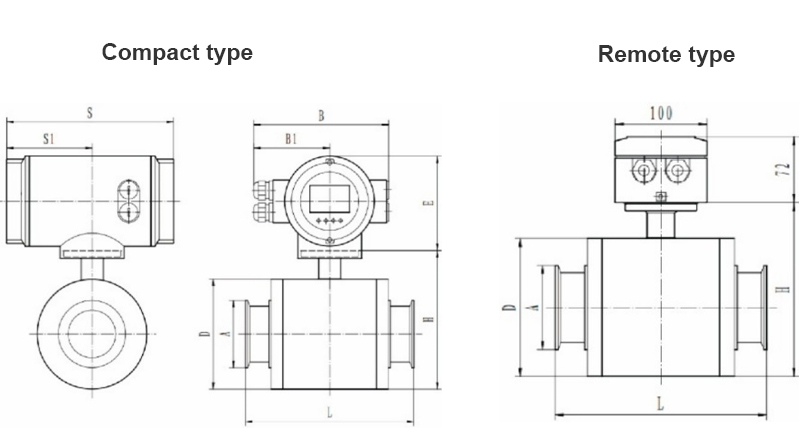

DIMENSION


Size	L	φA	φD	H
DN10	150	34	84	143
DN15	150	34	92	151
DN20	155	50.5	92	151
DN25	160	50.5	94	153
DN32	160	50.5	102	161
DN40	160	64	113	172
DN50	160	64	113	172
DN65	165	91	132	191
DN80	165	105	138	197
DN100	190	130	164	223

MODEL SELECTION

AEMG -

□□□

□

□□

□

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[9]

[10]

[11]

[12]

[13]

[14]

[1]	Nominal Diameter(mm)/ [inches]					[7]	Grounding and Lining Protection
	002		032 [1¼]	250 [10”]	900 [36”]		-0	Flange or body ground (10...2400)
	003		040 [1½]	300 [12”]	102 [40”]		-1	Earth ring (10...250)
	004		050 [2”]	350 [14”]	122 [48”]		-2	Ground electrode (25...2400)
	006		065 [2½]	400 [16”]	142 [56”]		-3	Inlet protection ring (50...300)
	008		080 [3”]	400 [16”]	162 [64”]	[8]	Max. Process Temperature
	010		100 [4”]	500 [20”]	182 [72”]		A	≤80℃ (All Linings)
	015 [½”]		125 [5”]	600 [24”]	202 [80”]		B	≤120℃ (PTFE、PFA、F46)
	020 [¾”]		150 [6”]	700 [28”]	222 [88”]		C	≤180℃ (PTFE、PFA)
	025[1’’]		200 [8”]	800 [32”]	242 [96”]	[9]	Configuration - sensor/transmitter
							C	Compact (10...1000)
[2]	Device Type						R	Remote (with 10m cable)
	F	Flange				[10]	Environmental Protection Class
	I	Insertion					5	IP65
	W	Wafer					7	IP67
	K	Clamp					8	IP68(Remote Type Only)
[3]	Flange Rating					[11]	Power Supply
	06	0.6MPa (700...2400)					-A	(85-265)VAC/(45-63)Hz
	10	1.0MPa (200...1200)					-D	(9-32)VDC
	16	1.6MPa (10...600)					-B	3.6VDC lithium battery
	20	ANSI 150 (15...600)					-C	3.6VDC lithium battery +(85-265)VAC/(45-63)Hz
	25	2.5MPa (10...600)
	40	4.0MPa (10...150)					-F	3.6VDC lithium battery +(9-32)VDC
	50	ANSI 300 (15...600)
	99	Special				[12]	Output and Input
[4]	Flange and Shell Material						B	Basic Configuration (current, pulse and contact outputs)
	0	Carbon steel
	4	304 Stainless Steel					M	Basic Configuration+MODBUS
	6	316 Stainless Steel					H	Basic Configuration+HART
	9	Special					P	Basic Configuration+Profibus-DP
[5]	Lining Material					[13]	Calibration Specification
	1	Soft Neoprene (≤2400)					1	3 point, 0.5% accuracy
	2	Hard Neoprene (≤2400)					2	3 point, 0.2% accuracy
	3	PTFE (≤2400)					3	5 point, 0.5% accuracy
	4	Polyurethane (≤300)					T	Other
	5	PFA (≤250)				[14]	Special Functions
	6	F46 (≤250)					/B	None
	7	Ceramics (≤250)					/T	Power off timer
	8	ETFE (≤600)					/Q	Quantitative control
	9	Nylon (≤2400，Insertion type only)					/H	Hourly accumulation
[6]	Electrode Material						/J	Relay output
	1	316L Stainless Steel					/S	High frequency slurry
	2	Hastelloy C-22					/G	GPRS
	3	Hastelloy B-10					/N	NB-IoT
	4	titanium					/L	Ultra-low temperature
	5	tantalum					/P	Pressure sensor
	6	platinum/iridium Alloy					/K	RTD
	7	Tungsten Coated Stainless Steel					/C	Conductivity Sensor
	8	Ceramic
E.G.	Ordering Code: AEMG-100K10031-2AC5-AM1/B
	A+K electromagnetic flowmeter; DN100, Clamp type, 1.0MPa, Carbon steel flange and shell, PTFE lining, 316L stainless steel electrode; Ground electrode, Max. Process Temperaturee≤80℃, Compact–sensor/transmitter, Ingress Protection Class IP65; AC power supply, Basic configuration+MODBUS, 3 point, 0.5% accuracy.
