Nominal Size (mm)

DN50~DN600

DN50~DN1600

DN150~15000

Average Flow Velocity (m/s)

0.05~20

0.02~0.3

0.3~20

0.02~0.3

0.3~20

Accuracy Class

1

1

0.5

0.5

0.2

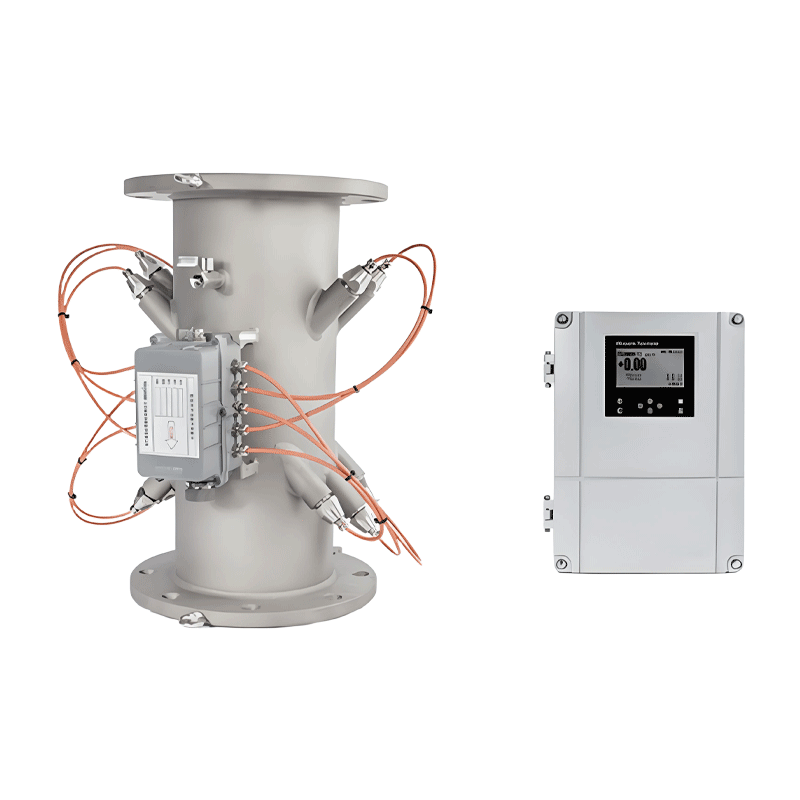

Measuring Tube (Primary Element)

Working Pressure

1.0, 1.6, 2.5, 4.0 (MPa) (Other options available)

Working Temperature

-40°C~+150°C (Other options available)

Protection

IP68

Flange Standard

GB, HB, ANSI, others

Material

Carbon Steel, Stainless Steel, Others

Probe Material

PE, Stainless Steel, Titanium Alloy

Controller (Secondary Instrument)

Explosion-proof Grade

Ex db II C T6 Gb

Flow Units

m³, L, Gallon

Output Signal

4-20mA, Pulse, RS232C, RS485, Alarm

Display Parameters

Instantaneous Flow, Accumulated Flow, Time, Speed, Sound Speed, Pressure (optional)

Ambient Temperature

-40℃~+60℃

Relative Humidity

≤90%

Protection

IP65, IP66

Power Supply

110 (60Hz) / 220 (50Hz) VAC, 24VDC (optional)

Power Consumption

8W

Dimensions

300x220x100 mm (LxWxH)

Cable Hole Specification

Cable Lock PG11, Main Cable Lock PG21

Signal Cable (10-core Ф14.5mm, 6-core 12mm)

Length

10m (Standard configuration)
