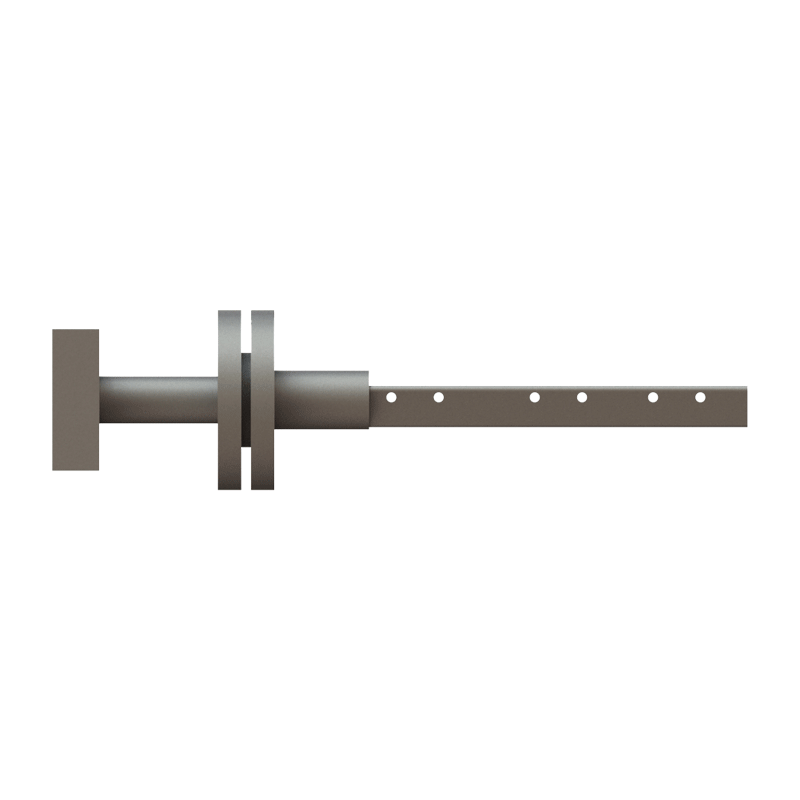

A+X Pitot Tubes are designed and manufactured in accordance with ISO 3966. It is mostly used for large diameter measurement.

Pitotube has outstanding performance such as wide measurement range, low pressure loss, non-stop maintenance, not easily contaminated, and easy cleaning. It is suitable for flow measurement of low-pressure, low flow rate large-diameter flue gas and air fluid.

Product Highlights

· Widely used for measuring various dry or humid gases, liquids, vapors, and other media

· The probe material can be specifically designed for various highly corrosive media

· Low pressure aperture of 8mm, good anti blocking performance

· Small installation workload, choice of integrated or split installation method

· The power loss of the pipeline is small

· The symmetrical cross-section of the probe allows for bidirectional measurement

Standard Specifications

Turndown Ratio: 1:10

Pipe Diameter: 8-5000mm

Straight Run: 7D before, 3D after

Accuracy: ±1.0%

Repeatability: ±0.1%

Pressure: 0-25MPa

Temperature: -100-500℃

Measurement Fluid: Air, Gas, Fuel Gas, Vapor, Corrosive Solution

Reference Standard: ISO 3966-197

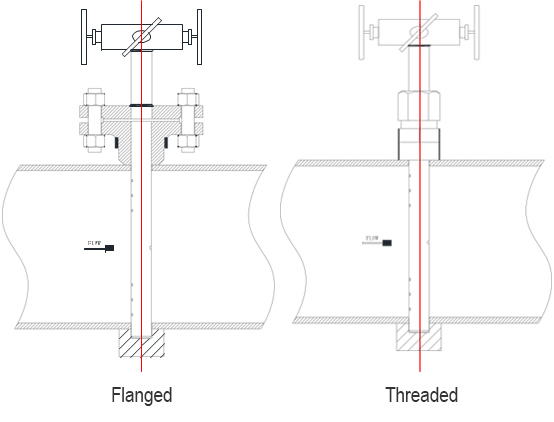

Installation Method: plug-in flange, plug-in threaded, pipeline flange, pipeline threade
