Material

Measuring tube: SS304(standard)

Flange: Carbon steel (Standard)

SS304/316/316L (Option)

Coil housing: Carbon steel (standard)

SS304/316/316L (Option)

Electrode

316L Stainless Steel

Titanium

Tantalum

Hastelloy B

Hastelloy C

Tungsten Carbide

Platinu

Liner

Neoprene (DN40-DN2400)

PTFE (DN10-DN1000)

F46 (DN6-DN500)

Polyurethane (DN10-DN500)

PFA (DN10-DN500)

Temperature

-20~+60℃ (Neoprene)

-20~+120℃ (PTFE)

-40~+140℃ (F46)

-10~+60℃ (Polyurethane)

-40~+180℃ (PFA)

Ingress Protection

IP65 (standard)

IP68 can be optional for sensor

Flange Type

DIN PN10/PN16/PN25/PN40

ANSI 150# / ANSI 300# / ANSI 600#

JIS 10K / JIS 20K / JIS 30K

Explosion

Ex db ib mb llC T6 Gb

Ambient temp.

-20~+60℃

Grounding

electrode

SS316L electrode

(standard configuration)

Max. Pressure

420bar

6

0.0300

0.1017

0.2034

0.3051

0.4068

0.5085

1.2204

10

0.0840

0.2826

0.5652

0.8478

1.1304

1.4130

3.3912

15

0.1920

0.6362

1.2723

1.9085

2.5447

3.1809

7.6341

20

0.3390

0.131

2.2619

3.3929

4.5239

5.6549

13.5717

25

0.5310

1.7671

3.5343

5.3014

7.0686

8.8357

21.2058

32

0.8682

2.8938

5.7876

8.6814

11.5752

14.4690

34.7256

40

1.3560

4.5239

9.0478

13.5717

18.0956

22.6195

54.2868

50

2.1210

7.0686

14.1372

21.2058

28.2743

35.3429

84.8229

65

3.5850

11.9459

23.8918

35.8337

47.7836

59.7295

143.3508

80

5.4300

18.0956

36.1911

54.2867

72.3823

90.4779

217.1469

100

8.4810

28.2743

56.5487

84.8230

113.0973

141.3717

339.2919

150

19.0860

63.6173

127.2345

190.8518

254.4690

318.0863

763.4070

200

33.9300

113.0973

226.1947

339.2920

452.3893

565.4867

1357.1679

250

53.0130

176.7146

353.4292

530.1438

706.8583

883.5729

2120.5749

300

76.3410

254.469

508.9380

763.4070

1017.8760

1272.3450

3053.6280

350

103.9080

346.3606

692.7212

1039.0818

1385.4424

1731.8030

4156.3272

400

135.7170

452.3893

904.7787

1357.1680

1809.5574

2261.9467

5428.6722

450

171.7680

572.5553

1145.1105

1717.6658

2290.2210

2862.7763

6870.6630

500

212.0580

706.8583

1413.7167

2120.5750

2827.4334

3534.2917

8482.3002

600

305.3640

1017.876

2035.7520

3053.6281

4071.5041

5089.3801

12214.5123

700

415.6320

1385.4424

2770.8847

4156.3271

5541.7694

6927.2118

16625.3082

800

542.8680

1809.5574

3619.1147

5428.6721

7238.2295

9047.7868

21714.6885

900

687.0660

2290.221

4580.4421

6870.6631

9160.8842

11451.1052

27482.6526

1000

848.2290

2827.4334

5654.8668

8482.3002

11309.7336

14137.1669

33929.2008

1200

1221.4500

4071.5041

8143.0082

12214.5122

16286.0163

20357.5204

48858.0489

1400

1662.5310

5541.7694

11083.5389

16625.3083

22167.0778

27708.8472

66501.2334

1600

2171.4690

7238.2295

14476.4589

21714.6884

28952.9179

36191.1474

86858.7537

1800

2748.2640

9160.8842

18321.7684

27482.6225

36643.5367

45804.4209

109930.6101

2000

3392.9190

11309.7336

22619.4671

33929.2007

45238.9342

56548.6678

135716.8026

2200

4105.4319

13684.7776

27369.5551

41054.3328

54739.1103

68423.8880

164217.3311

2400

4885.8033

16286.0163

32572.0326

48858.0490

65144.0652

81430.0816

195432.1957

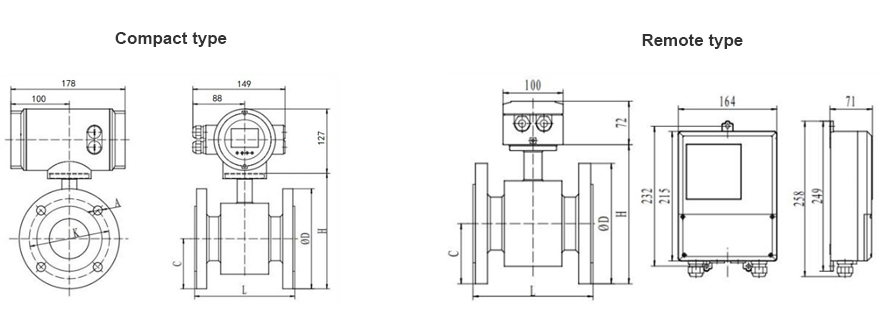

mm

inch

MPa

mm

mm

mm

mm

mm

mm

15

1/2’’

4.0

200

48

149

65

14

95

20

3/4’’

200

53

154

75

14

105

25

1’’

200

58

159

85

14

115

32

1  1/4’’

200

70

172

100

18

140

40

1  1/2’’

200

75

189

110

18

150

50

2

200

83

197

125

18

165

65

2  1/2’’

200

93

220

145

18

185

80

3’’

200

100

227

160

18

200

100

4’’

1.6

250

118

257

180

18

220

125

5’’

250

135

289

210

18

250

150

6’’

300

150

318

240

22

285

200

8’’

1.0

350

170

379

295

22

340

250

10’’

450

203

429

350

22

395

300

12’’

500

230

482

400

22

445

350

14’’

550

260

534

460

22

505

400

16’’

600

290

594

515

26

565

450

18’’

600

320

649

565

26

615

500

20’’

600

358

697

620

26

670

600

24’’

600

420

799

725

30

780

700

28’’

700

448

909

840

30

895

800

32’’

800

508

1019

950

33

1015

900

36’’

900

558

1119

1050

33

1115

1000

40’’

0.6

1000

615

1199

1120

33

1175

1200

48’’

1200

728

1419

1340

33

1405

1400

56’’

1400

815

1630

1560

35

1630

1600

64’’

1600

915

1830

1760

35

1830

1800

72’’

1800

1023

2040

1970

39

2045

2000

80’’

2000

1133

2248

2180

42

2265

2200

88’’

2200

1238

2453

2390

42

2475

2400

96’’

2400

1343

2658

2600

42

2685

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[9]

[10]

[11]

[12]

[13]

[14]

002

032 [1¼]

250 [10”]

900 [36”]

-0

Flange or body ground (10...2400)

003

040 [1½]

300 [12”]

102 [40”]

-1

Earth ring (10...250)

004

050 [2”]

350 [14”]

122 [48”]

-2

Ground electrode (25...2400)

006

065 [2½]

400 [16”]

142 [56”]

-3

Inlet protection ring (50...300)

008

080 [3”]

400 [16”]

162 [64”]

[8]

Max. Process Temperature

010

100 [4”]

500 [20”]

182 [72”]

A

≤80℃ (All Linings)

015 [½”]

125 [5”]

600 [24”]

202 [80”]

B

≤120℃ (PTFE、PFA、F46)

020 [¾”]

150 [6”]

700 [28”]

222 [88”]

C

≤180℃ (PTFE、PFA)

025[1’’]

200 [8”]

800 [32”]

242 [96”]

[9]

Configuration - sensor/transmitter

C

Compact (10...1000)

[2]

Device Type

R

Remote (with 10m cable)

F

Flange

[10]

Environmental Protection Class

I

Insertion

5

IP65

W

Wafer

7

IP67

K

Clamp

8

IP68(Remote Type Only)

[3]

Flange Rating

[11]

Power Supply

06

0.6MPa (700...2400)

-A

(85-265)VAC/(45-63)Hz

10

1.0MPa (200...1200)

-D

(9-32)VDC

16

1.6MPa (10...600)

-B

3.6VDC lithium battery

20

ANSI 150 (15...600)

-C

3.6VDC lithium battery

+(85-265)VAC/(45-63)Hz

25

2.5MPa (10...600)

40

4.0MPa (10...150)

-F

3.6VDC lithium battery

+(9-32)VDC

50

ANSI 300 (15...600)

99

Special

[12]

Output and Input

[4]

Flange and Shell Material

B

Basic Configuration (current,

pulse and contact outputs)

0

Carbon steel

4

304 Stainless Steel

M

Basic Configuration+MODBUS

6

316 Stainless Steel

H

Basic Configuration+HART

9

Special

P

Basic Configuration+Profibus-DP

[5]

Lining Material

[13]

Calibration Specification

1

Soft Neoprene (≤2400)

1

3 point, 0.5% accuracy

2

Hard Neoprene (≤2400)

2

3 point, 0.2% accuracy

3

PTFE (≤2400)

3

5 point, 0.5% accuracy

4

Polyurethane (≤300)

T

Other

5

PFA (≤250)

[14]

Special Functions

6

F46 (≤250)

/B

None

7

Ceramics (≤250)

/T

Power off timer

8

ETFE (≤600)

/Q

Quantitative control

9

Nylon (≤2400，Insertion type only)

/H

Hourly accumulation

[6]

Electrode Material

/J

Relay output

1

316L Stainless Steel

/S

High frequency slurry

2

Hastelloy C-22

/G

GPRS

3

Hastelloy B-10

/N

NB-IoT

4

titanium

/L

Ultra-low temperature

5

tantalum

/P

Pressure sensor

6

platinum/iridium Alloy

/K

RTD

7

Tungsten Coated Stainless Steel

/C

Conductivity Sensor

8

Ceramic

E.G.

Ordering Code: AEMG-150F10011-0AC5-AM1/B

A+K electromagnetic flowmeter; DN150, Flange type, 1.0MPa, Carbon steel flange and shell, Soft Neoprene lining, 316L stainless steel electrode; Flange grounding, Max. Process Temperaturee≤80℃, Compact–sensor/transmitter, Ingress Protection Class IP65; AC power supply, Basic configuration+MODBUS, 3 point, 0.5% accuracy.
